Stainless Steel IBC Totes
Built for Maximum Chemical Resistance and Industrial Performance
Hawman Container Services’ stainless steel IBC tanks are engineered for superior corrosion resistance, durability, and hygiene in demanding industrial environments. Crafted from high-quality 304L or optional 316L stainless steel, these tanks are ideal for the chemical, oil & gas, mining, food processing, and specialty liquid industries. With their robust design, sanitary features, and UN31A/IMDG certifications, our stainless steel IBCs ensure safe storage, efficient transport, and reliable handling of hazardous, corrosive, or sensitive liquids.
Why Hawman Stainless Steel IBCs Stand Out
Corrosion-Resistant & Hygienic: Premium 304L stainless steel construction resists corrosion from acids, caustics, solvents, and food-grade liquids. Optional 316L material provides additional chemical resistance for highly aggressive substances.
Total Drainage Design: Cross-broke bottoms and radius corner designs allow near-complete drainage, minimizing product waste and making cleaning and sanitizing fast and effective—perfect for food-grade or high-purity applications.
Certified & Safe: UN31A transportable IBCs and IMDG certification ensure compliance for over-the-road and international transport of hazardous and non-hazardous liquids.
Industrial Strength: Built to withstand harsh industrial environments, including mining, oilfield, chemical, and food processing operations.
Customizable Features: Optional lids, valves, vents, and base configurations allow tailored solutions for specialized chemical handling, viscous liquids, and sanitary requirements.
Sustainable & Reusable: Stainless steel IBCs are designed for long-term use and are 100% recyclable at the end of their service life.
Designed for Easy Handling & Operational Efficiency
Hawman stainless steel IBC tanks are built with operators and process efficiency in mind:
Stackable & Accessible: Compatible with forklifts and pallet jacks for easy movement and storage.
Safe Venting & Filling: Standard venting prevents over-pressurization, while removable lids, 3” fill ports, and sump designs ensure efficient filling, drainage, and cleaning.
Sanitary & Food-Grade Ready: Radius corners and passivation-ready stainless steel make these IBCs ideal for food oils, additives, and sensitive chemical liquids.
Versatile Applications: Perfect for caustics, acids, solvents, lubricants, lube oils, diesel/fuel oils, food-grade oils and additives, and Class III flammable liquids.
S Series
Heavy-duty metallic construction, UN31A transportable IBCs, designed for over-the-road transport and storage of lubricants, diesel/fuel oil, chemicals, and class III flammable liquids. Commonly used in mining, oil & gas, and petrochemical industries, these totes combine durability with versatility and safety.
Available Footprints: 42” × 48” or 48” × 48” (custom sizes available upon request)
Fill Cap Openings: Up to 22.5”
Capacities: Up to 2,602 litres
Valve Sizes: 1” to 4”, multiple materials and configurations
Key Benefits
Durable Construction: Thick metallic walls resist impact and wear
UN31A Certified: Safe for hazardous liquid transport up to 2.0 SG
Stackable Design: Stack up to 4 high, fully loaded
Versatile Use: Ideal for lubricants, chemicals, diesel/fuel, flammables
Customizable: Optional finishes, valves, and accessories to meet specific operational needs
Standard Features
Certification: UN31A for over-the-road transport of hazardous and non-hazardous liquids
Lid: 16’’ plain lid with gasket and bolted ring closure
Vent: 2’’ polyethylene pressure & vacuum relief vent
Sight Gauge: Recessed sight gauge with isolation valve and litre/USG graduations
Drain Valve: 2’’ FP brass ball valve with PTFE seats and male camlock
Mobility: 8’’ legs with front and rear forklift entry
Finish: Industrial oxide primer and enamel coating
Optional Equipment & Finishes
Valve Upgrade: 2’’ stainless steel ball valve with Teflon seats, standard handle, 2’’ SS male camlock & dust cap
Vent Upgrade: 2’’ SS pressure & vacuum relief vent with SS springs and Viton seals
Lid Options: 16’’ or 20’’ lid with 10’’ flip-open hatch, gasket (Buna, Viton, or Hypalon), and bolted ring closure
Submerged Fill/Suction: 2’’ line to 1’’ from bottom with male camlock & dust cap on top
Top Coupling: 1’’ to 6’’ FNPT threaded half coupling with plug
Base Upgrade: 10’’ high legs with 4-way fork tube access
In addition to the UN31A certification for over-the-road transport of dangerous goods, the HCS C & S Series IBCs are also CAN/ULC-S601-14 certified for storage of flammable & combustible liquids having undergone both testing requirements. Custom sizes and secondary containment designs available as per customer request.
| Foot Print | Shell Height | Volume | Calculated Tare Mass | |||
|---|---|---|---|---|---|---|
| In | M | In | L | Usg | Kg | Lbs |
| 48" x 48" | 1.83 | 72 | 2602 | 687 | 391 | 862 |
| 48" x 48" | 1.68 | 66 | 2386 | 630 | 371 | 818 |
| 48" x 48" | 1.52 | 60 | 2170 | 573 | 351 | 775 |
| 48" x 48" | 1.37 | 54 | 1954 | 516 | 332 | 731 |
| 48" x 48" | 1.22 | 48 | 1739 | 459 | 312 | 688 |
| 48" x 48" | 1.07 | 42 | 1523 | 402 | 292 | 644 |
| 48" x 48" | 0.91 | 36 | 1307 | 345 | 272 | 600 |
| 48" x 48" | 0.76 | 30 | 1091 | 288 | 253 | 557 |
| 42" x 48" | 1.83 | 72 | 2268 | 599 | 359 | 792 |
| 42" x 48" | 1.68 | 66 | 2080 | 549 | 341 | 751 |
| 42" x 48" | 1.52 | 60 | 1891 | 500 | 322 | 710 |
| 42" x 48" | 1.37 | 54 | 1703 | 450 | 304 | 670 |
| 42" x 48" | 1.22 | 48 | 1515 | 400 | 285 | 629 |
| 42" x 48" | 1.07 | 42 | 1327 | 350 | 267 | 588 |
| 42" x 48" | 0.91 | 36 | 1139 | 300 | 248 | 547 |
| 42" x 48" | 0.76 | 30 | 951 | 251 | 230 | 507 |

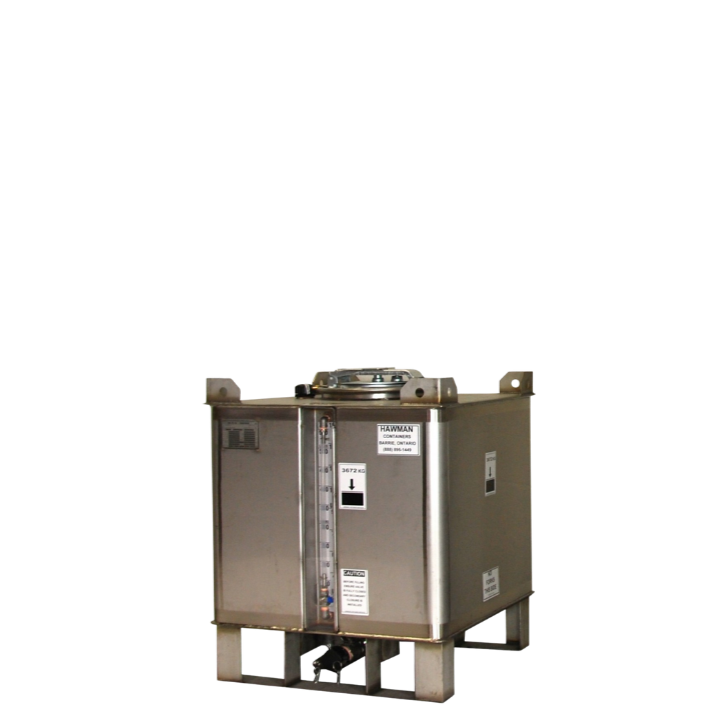

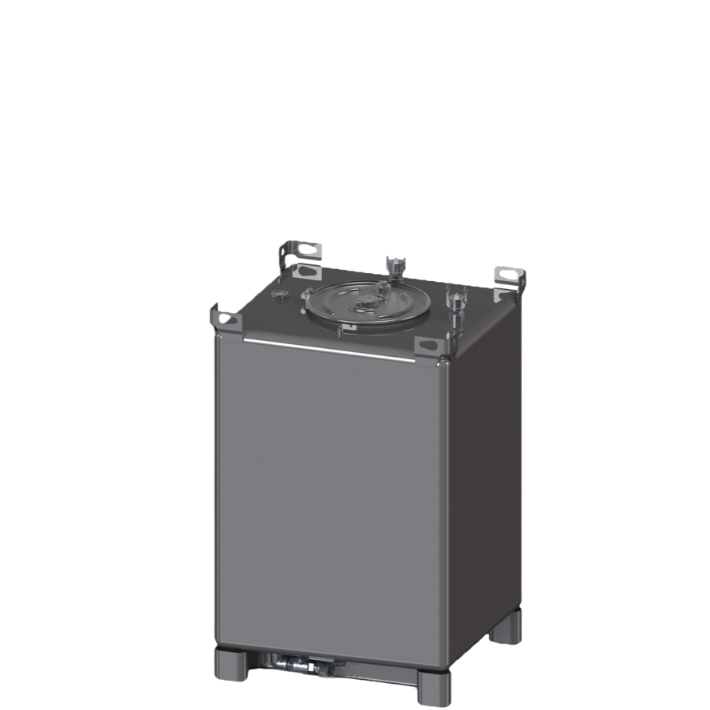

SS Series
Heavy-duty stainless steel construction engineered for demanding industrial and sanitary applications, featuring a cross broke bottom for total product drainage and a fully radius corner design for superior cleanability.
Designed for the storage, transport, and handling of chemicals, food-grade liquids, lubricants, and Class III flammable liquids, SS Series IBCs are widely used in the chemical, oilfield, mining, fuel, and food processing industries.
Built from 304L stainless steel and certified as UN31A transportable IBCs, these totes deliver corrosion resistance, strength, and long-term reusable performance in harsh industrial environments.
Key Applications
Chemicals
Caustics and acids
Lubricants and lube oils
Diesel and fuel oil
Solvents
Food-grade oils
Food-grade additives
Class III flammable liquids
Key Benefits
Corrosion-Resistant Construction: 304L stainless steel provides long-term durability in aggressive chemical environments
Total Drain Design: Cross broke bottom ensures near-complete product evacuation
Sanitary Radius Corners: 2” fully radius corners reduce product hang-up and simplify cleaning and sanitizing
Food-Grade Ready: Ideal for food and additive applications requiring cleanable stainless construction
UN31A Certified: Approved for over-the-road transport of hazardous and non-hazardous liquids
Reusable & Sustainable: Long service life with fully recyclable stainless steel construction
Standard Features
Body Construction: All 10-gauge 304L stainless steel body with 2” fully radius corners
Lid: 22.5” stainless steel eyebrow-style lid with Buna or EPDM gasket and stainless steel bolted ring closure
Fill Cap: 3” stainless steel fill / fusible cap centered in lid
Vent: 2” polyethylene pressure and vacuum relief vent
Drain Valve: Side-mounted 2” stainless steel reduced-port ball valve with PTFE seats, reverse handle, and 2” stainless steel male camlock with dust cap
Legs: Four 7.5” high stainless steel legs
Surface Treatment: Pickle and passivation service
Optional Equipment & Finishes
Material Upgrade: 316L stainless steel construction available
Vent Upgrade: All stainless steel vent option
Valve Options: Full-port stainless steel valve, fire-safe valve, or sanitary butterfly valve with protective 10-gauge 304 stainless steel guard
Submerged Fill / Suction: 2” line to 1” from bottom with male camlock and dust cap
Top Coupling: 1” to 6” FNPT threaded half coupling with plug
Built for Corrosive & Sanitary Performance
The SS Series stainless steel IBC is engineered for applications where corrosion resistance, cleanliness, and total drainage are critical. The radius corner design, cross broke bottom, and stainless steel construction minimize contamination risk, simplify cleaning, and extend service life in chemical and food-grade environments.
| Foot Print | Tank Overall Height | Tank Shell Height | Volume | Calculated Tare Mass | ||||
|---|---|---|---|---|---|---|---|---|
| In | M | In | M | In | L | Usg | Kg | Lbs |
| 42" x 48" | 1.28 | 50.50 | 0.91 | 36 | 1325 | 350 | 200 | 441 |
| 42" x 48" | 1.18 | 46.50 | 0.81 | 32 | 1195 | 316 | 189 | 416 |
| 42" x 48" | 1.08 | 42.50 | 0.71 | 28 | 1064 | 281 | 177 | 391 |
| 42" x 48" | 0.98 | 38.50 | 0.61 | 24 | 934 | 247 | 166 | 366 |
| 42" x 48" | 0.88 | 34.50 | 0.51 | 20 | 804 | 212 | 155 | 341 |
| 42" x 48" | 0.77 | 30.50 | 0.41 | 16 | 673 | 178 | 143 | 316 |
| 42" x 48" | 0.67 | 26.50 | 0.31 | 12 | 543 | 143 | 132 | 291 |
| 42" x 48" | 0.57 | 22.50 | 0.2 | 8 | 413 | 109 | 121 | 266 |

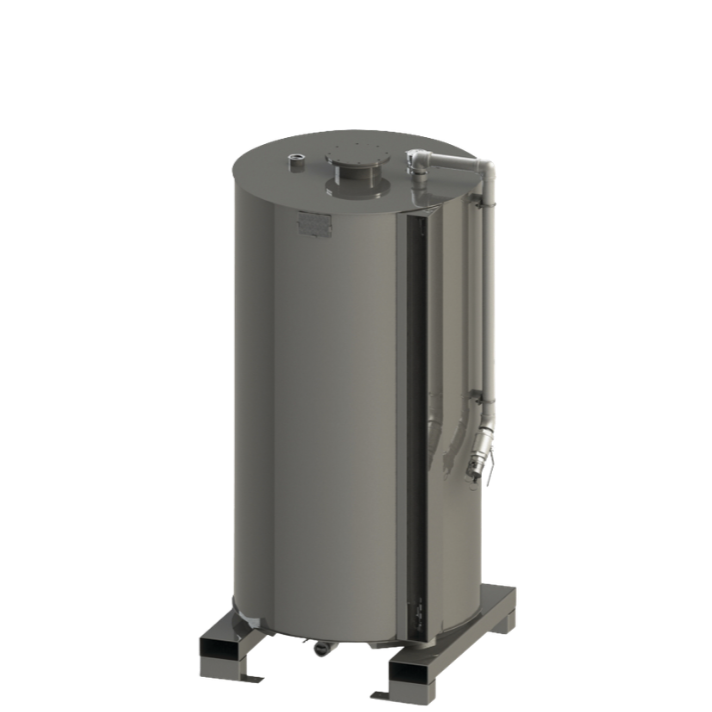

SR Series
Heavy-duty cylindrical metallic construction, designed for the storage and transport of hazardous and non-hazardous liquids. SR Series IBCs are commonly used in oil & gas, petrochemical, and water treatment chemical industries.
These steel IBCs are UN31A certified for over-the-road transport (45.5” diameter series only), offering reliable handling, stacking, and dispensing for industrial liquids.
Key Applications
Lubricants
Diesel and fuel oils
Chemicals for water treatment
Flammable Class III liquids
Key Benefits
Cylindrical Heavy-Duty Design: Thick metallic walls provide durability and resistance to industrial wear and tear
UN31A Certified: Safe for transport of hazardous liquids in the 45.5” diameter series
Versatile Capacities: Up to 3,200 litres for large-volume storage needs
Stackable and Mobile: Designed for easy forklift handling with full 10-gauge fork tubes
Customizable: Optional valves, vents, lids, and base configurations for specialized applications
Standard Features
Lid: 16” plated removable lid with flip-open hatch, gasket, and bolted ring closure
Vent: 2” polyethylene pressure and vacuum relief vent
Sight Gauge: External assembly with isolation valve, calibration, and Lexan cover
Drain Valve: 2” full-port brass ball valve with PTFE seats and male camlock
Forklift Access: Dual 10-gauge formed fork tubes with foot pads
Finish: Industrial oxide primer and enamel coating
Optional Equipment & Finishes
Valve Upgrade: 2” stainless steel ball valve with Teflon seats, standard handle, 2” SS male camlock & dust cap
Vent Upgrade: 2” stainless steel pressure & vacuum relief vent with SS springs and Viton seals
Lid Options: 20” lid with 10” flip-open hatch, gasket (Buna, Viton, or Hypalon), and bolted ring closure
Submerged Fill/Suction: 2” line to 1” from bottom with male camlock & dust cap on top
Top Coupling: 1” to 6” FNPT threaded half coupling with plug
Base Upgrade: Optional 4-way fork tube access for enhanced mobility
| Dia. | Tank Shell Height | Volume | Calculated Tare Mass | Tank Overall Height | ||||
|---|---|---|---|---|---|---|---|---|
| In | M | In | L | Usg | Kg | Lbs | M | In |
| 60 | 1.83 | 72 | 3200 | 845 | 537 | 1185 | 2.19 | 86.31 |
| 60 | 1.52 | 60 | 2703 | 714 | 510 | 1124 | 1.86 | 73.31 |
| 45.5 * | 1.52 | 60 | 1608 | 425 | 275 | 607 | 1.91 | 75.00 |
| 45.5 * | 1.37 | 54 | 1449 | 383 | 264 | 581 | 1.75 | 69.00 |
| 45.5 * | 1.22 | 48 | 1288 | 340 | 252 | 555 | 1.60 | 63.00 |
| 45.5 * | 1.07 | 42 | 1128 | 298 | 240 | 529 | 1.45 | 57.00 |
| 45.5 * | 0.91 | 36 | 968 | 256 | 228 | 503 | 1.30 | 51.00 |
| 45.5 * | 0.76 | 30 | 808 | 213 | 217 | 478 | 1.14 | 45.00 |
* Note: UN31A Certification applicable to 45.5” Dia Only

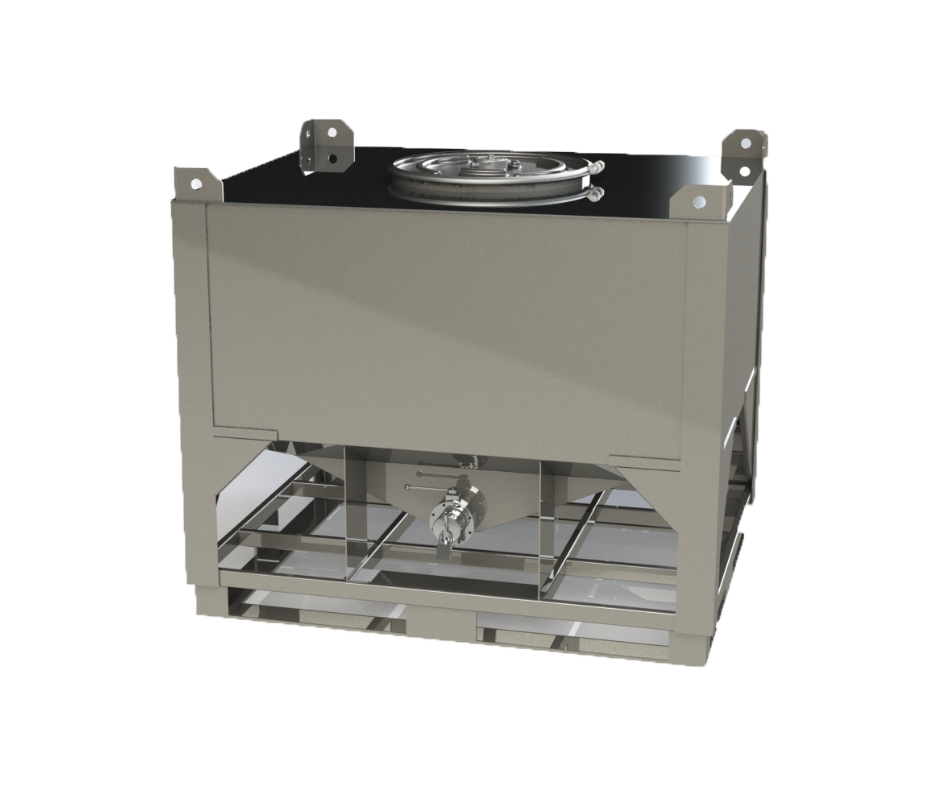

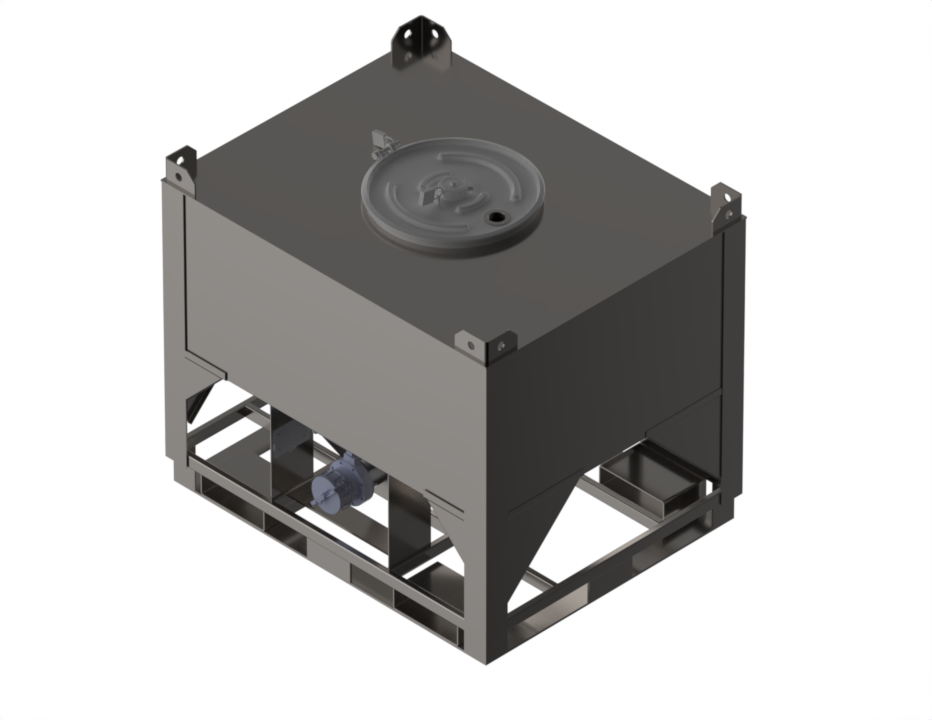

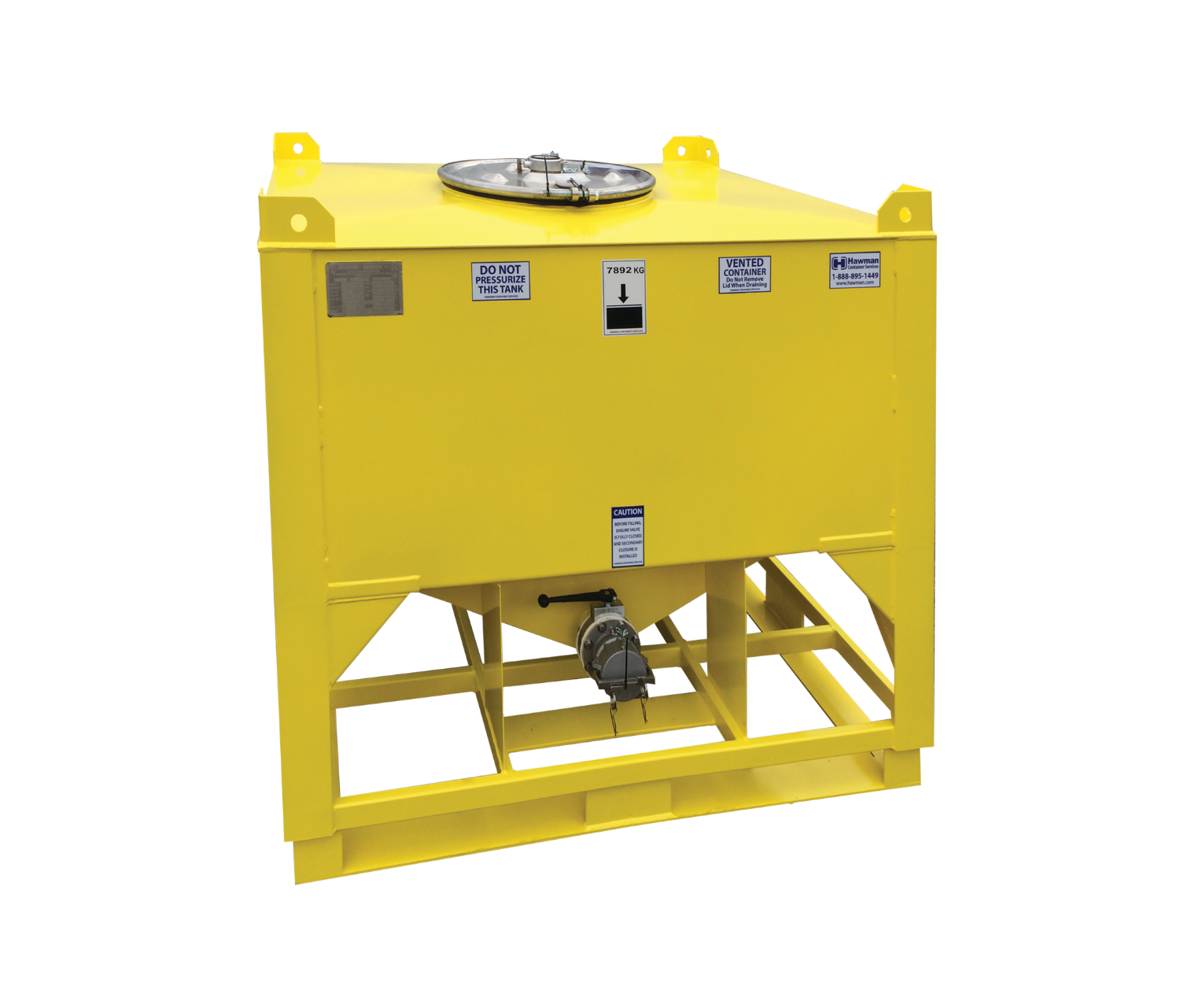

Mining Emulsion Explosives IBCs
Built for High-Viscosity Mining Applications
Hawman Container Services’ Emulsion Totes are engineered for the storage, transport, and handling of viscous emulsified products, specifically designed to meet the demands of the mining industry. Manufactured from 304 stainless steel or carbon steel (optional 316L), these low-profile, hopper-bottom IBCs provide reliable discharge, durability, and operational efficiency in confined underground environments.
With larger 48” × 60” and 60” × 72” footprints, Emulsion Totes are designed for low mine-shaft clearances while maintaining full UN31A transport compliance, making them ideal for emulsion explosives, viscous lubricants, and other heavy liquids.
Key Applications
Emulsified explosives
Viscous lubricants and oils
Mining chemical products
High-density fluids for underground operations
Key Benefits
Hopper-Bottom Design: 25° angled bottom ensures efficient discharge of viscous emulsions and reduces product hang-up.
Low-Profile Configuration: Optimized height allows easy handling under mine-shaft ceilings and tight operational areas.
Rugged Construction: Heavy-duty 304L stainless steel or carbon steel provides long-term durability in harsh mining environments.
Safe & Certified: UN31A transportable IBC certification ensures compliance for over-the-road and on-site transport of hazardous and non-hazardous viscous liquids.
Operator-Friendly: Standard 4-way forklift entry and well-positioned vents simplify movement and handling.
Standard Features
Lid: 22.5” stainless steel eyebrow-style lid with Buna or EPDM gasket and stainless steel bolted ring closure
Fill Cap: 3” stainless steel fill/fusible cap centered in lid
Vent: 2” polyethylene pressure and vacuum relief vent
Bottom Design: 25° hopper bottom to forward-facing 3” butterfly valve (4” optional)
Valve: 3” aluminum TTMA butterfly valve with 3” aluminum camlock and dust cap
Forklift Access: Standard 4-way forklift entry
Footprint Options: 48” × 60” or 60” × 72”
Overall Height: Low-profile design, ideal for underground mine use
Optional Equipment & Finishes
Material Upgrade: 316L stainless steel construction for highly corrosive applications
Valve Options: Stainless steel valve with female couplers
Lid Options: Alternative lid styles available from 8” to 22.5”
Built for Viscous Product Efficiency
The Emulsion Tote is purpose-built for underground mining logistics and viscous emulsion handling. Its hopper-bottom geometry, low-profile design, and durable metallic construction minimize product waste, speed up transfer at the point of use, and withstand repeated handling in harsh environments.
| Footprint | Volume | Overall Height |
|---|---|---|
| 48" × 60" | 1338 L (353 US gal) | 51.75" |
| 60" × 72" | 1521 L (402 US gal) | 40.0" |

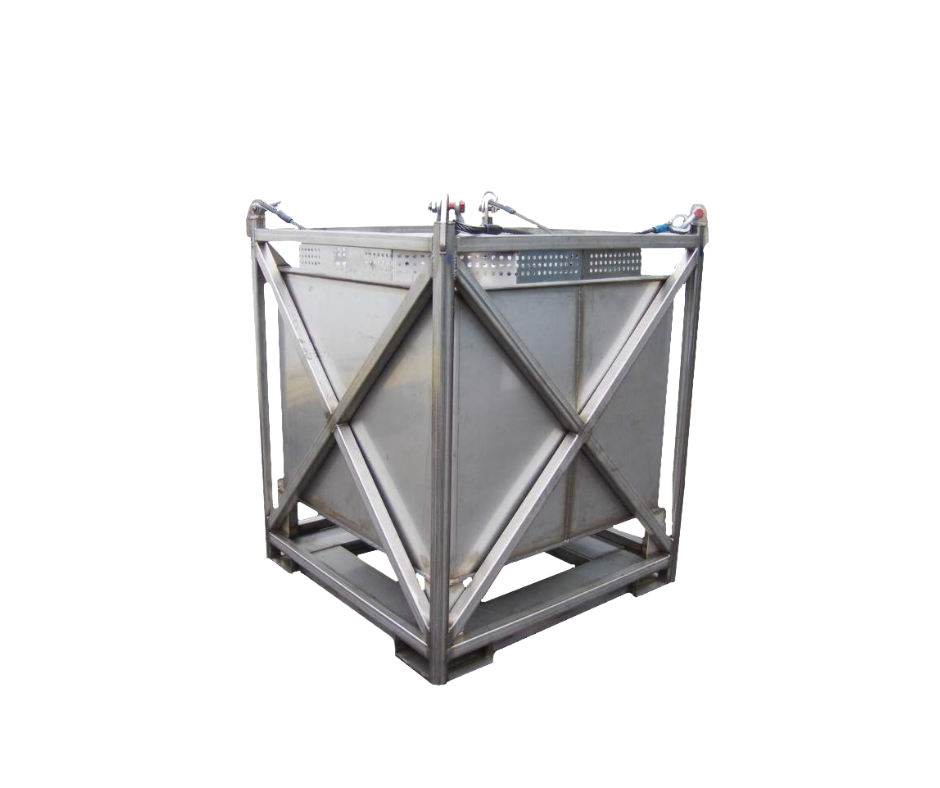

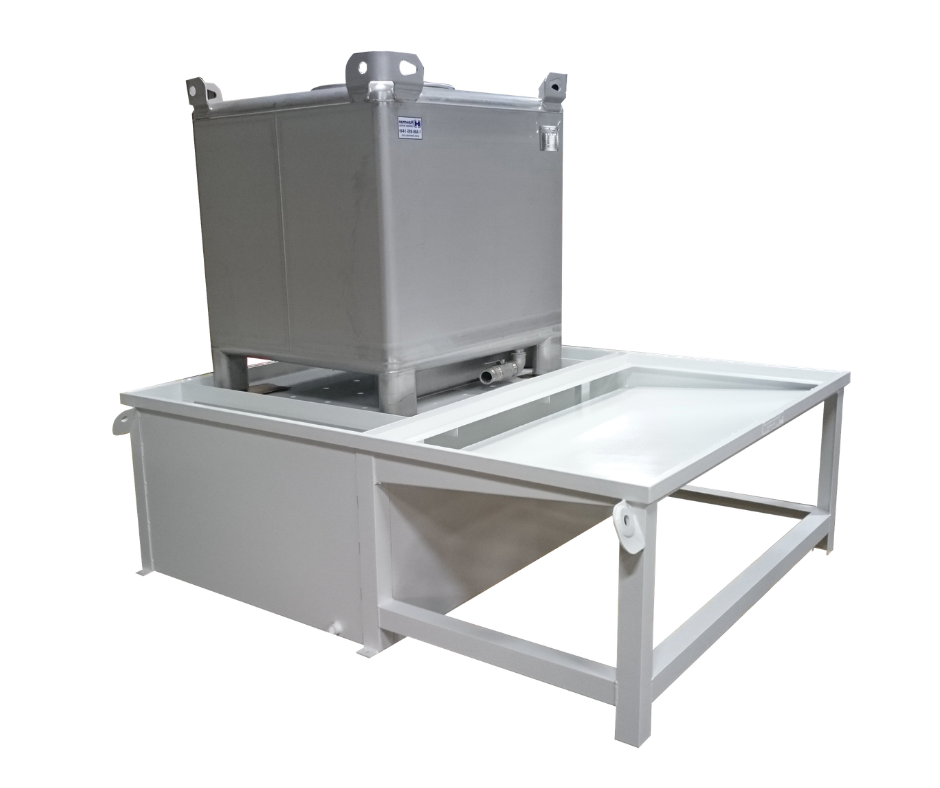

Custom Stainless Steel IBC Totes
HCS Custom Fabrication goes beyond standard IBC offerings, providing fully engineered, tailor-made fluid handling solutions for demanding industrial applications. Our engineering and applications team partners with customers to understand specific fluid handling requirements, develop conceptual designs, and produce detailed engineering deliverables prior to fabrication.
Whether your project requires specialized mother totes, stands, inter-stack frames, or containment solutions, HCS delivers robust, certified, and fully tested systems.
Key Applications
Hazardous and non-hazardous chemical storage
Oil & gas and petrochemical industry
Mining and industrial process fluids
Custom fluid handling for specialized operations
Key Benefits
Tailored Design: Every tote and system engineered for your specific fluid, footprint, and operational requirement
Certified Engineering: API 650 tank design, structural FEA, and P.Eng-stamped calculations for compliance
Comprehensive Manufacturing: ISO 9001 quality control, CWB-certified welding
Integrated Solutions: Complete assemblies including mother totes, inter-stack stands, steel supply totes, and containment basins
Project Support: Full project management, start-up assistance, on-site training, and QA documentation
Engineering Capabilities
Tank Design: API 650 tanks using AME software with calculations for wind, seismic, lifting lugs, and structural FEA, P.Eng. stamped
Piping Design: P&IDs, component selection, and supporting documentation
3D Modeling: GA drawings, Bill of Materials (BOM), and SolidWorks 3D models
QA & Documentation: Approval submittals, inspection & test plans, welders’ qualifications, and detailed procedures
Provincial Compliance: Piping data reports and P.Eng-stamped calculations for ABSA and other regulatory approvals
Hawman Custom Fabrication Capabilities
Quality Systems: ISO 9001, material traceability, inspection & test plans (ITPs), ISO N299 available
Certified Welding: CWB-certified W47.1 welders for structural frames and tank supports; AWS D1.1 certified procedures available
Shop Certifications: CSA B51 compliance
Testing & Inspection: NDE and PWHT as required, third-party testing including RT, UT, visual, magnetic particle, and PMI
Support Services: Project management, start-up assistance, and on-site training
